Tránsito ferroviario

  • Urban Rail Transport Transit System
  • IT3000 Electric Traction System

    The traction system is the heart of the rail transit vehicle and is one of the three key core technologies in the field of rail transit. The INVT rail transit traction system has 100% independent intellectual property rights, and the technological advancement, safety, reliability, comfort, energy conservation and environmental protection are all the leading levels in China.

    CT52-01 Type Traction Inverter

    The traction inverter is comprised of power unit, filter reactor, pre charging unit, cooling fan and traction control unit (DCU), it can convert DC into the three-phase AC with frequency and amplitude adjustable, thus drivingfour sets of traction motors. The main functions are traction and electric brake control, idle / slide protection control, train acceleration and deceleration impact limit protection, and fault diagnosis.

    Characteristcs

    High power density

    Simple and reliable two level inverter circuit

    Transformer uses magnetic integration technology

    Mainstream 1C4M drive mode

    Vector control based on harmonic elimination

    Centralized layout and modular design

    Lightweight stainless steel box

    Variable frequency forced air cooling system

    Especificacion

    Engineering Vehicle Traction System

    IT3100 Electric Traction System

    INTRAC IT3100_DC1500V electrical traction system is special for subway and engineering vehicle application and mainly composed of the traction high pressure tank, line reactor tank, traction inverter tank, traction motor, brake resistor and other equipments. Through the traction inverter, the system converts DC voltage (DC1500V) into a three-phase AC drive traction motor with adjustable voltage and frequency, transmitting the traction force to the wheel through gear assembly.

    CT55-01 Type Traction Inverter

    The traction inverter box VVVF consists of two traction inverter modules, a DC support capacitor, a current and voltage sensor, and a traction control unit (DCU). Each inverter module drives two traction motors, and the resistance braking chopper unit and the inverter module unit are integrated together.

    • Caracteristicas

    1.Simple and reliable two level inverter circuit

    2.Vehicle control and rack control mode, flexible configuration

    3.Vector control based on harmonic elimination

    4.Modular design, drawer type structure

    5.The power module is compact in structure, small in size and light in weight

    6.The heat pipe running air cooling is environmentally friendly and features low noise

    Specification

    Mineral Vehicles Traction System

    IT7000 Electric Traction System

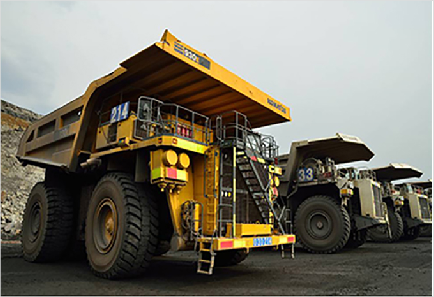

    NTRAC IT7000_DC1500V electric traction system is special for motorized wheel dump truck application and mainly composed of diesel generator, synchronous generator, rectifier, traction converter, ventilator, brake resistor, electric wheel and so on. The diesel generator drives synchronous generator to produce three-phase AC power supply, which is converted into DC700 ~ 1750V via three-phase full-bridge uncontrollable rectifier.

    ICE52-01 Traction Converter

    The main functions of traction converter include traction motor traction and electric braking control, idle / coasting protection control and system fault diagnosis.

    • Caracteristicas

    1. High power density

    2. 3300V/1200A IGBT parallel connection technology

    3. Simple and reliable two level inverter circuit

    4. Vector control based on harmonic elimination

    5. Centralized layout and modular design

    6. Light-weight carbon steel case

    7. Forced air cooling system

    • Especificación

    IPU52-01 Type Power Module

    IPU52-01 type power module carries high power density, 3300V/1200A IGBT parallel technology, modular design, easy maintenance, lightweight stainless steel structure, forced air cooling copper radiator, large creepage design etc, and meets the demand of PD4.

    • Caracteristicas
    • Especificación
    • Solicitud
    • Descargar

    1. High power density

    2. 3300V/1200A IGBT parallel technology

    3. Modular design, easy maintenance

    4. Lightweight stainless steel structure

    5. Forced forced air-cooled copper radiators

    6. Larger creepage design to meet PD4 requirements

    • Especificación
    Parameter nameParameter description
    Input voltageDC1500V(700V~1800V)
    Maximum switching frequency600 Hz
    Cooling methodForced air cooling
    Outline dimensionL×W×H402mm×461mm×515mm
    Weight95kg

    ICU-01 Inverter Control Unit

    ICU-01 inverter control unit is equipped with the back radiator, no cooling hole, and meets the dusty environment. The interface prevents mis-insertion design, vector control, good start performance and high torque accuracy. Modular design, easy maintenance.

    • Caracteristicas

    1. Radiator on the back of the shell, no heat sink hole to cope with the dusty environment

    2. Anti mis-plugging interface design

    3. Vector control, good starting performance, high torque accuracy

    4. Modular design, easy maintenance

    • Especificación
    Parameter nameParameter description
    Input voltageDC24V(18V~36V)
    Maximum input power100W
    Heat dissipation modeNatural cooling
    Outline dimension L×W×H329.5mm×285mm×136mm
    Weight7.5kg

    ICU-02 Type System Control Unit

    ICU - 02 system control unit mainly realize the following functions: control the electric wheel dump truck start order, control of electric wheel dump truck, set up and calculate torque instruction and send it to the control unit of inverter, control motor speed, control traction alternator magnetic field, control the power brake contactor, relay, warning lights, etc., control the closing order and the system fault detection, etc.

    • Características

    1. Control the starting sequence of electric wheel dumper

    2. Control the status of electric wheel dumper

    3. Setting and calculating torque instructions and sending them to the inverter control unit

    4. Control engine speed

    5. Control the magnetic field of traction alternator

    6. Control the power brake contactor, relay, warning light, etc.

    7. Control the closing order

    8. System fault detection

    Train Air-conditioning Control

    Rail vehicle air conditioning inverter is the four in one inverter, and it can drive two compressors, condensing fan, evaporative fan. Four groups inverters are independent drive and control, local failure will not affect other works.

    CZ42-01 Passenger Compartment Air Conditioning Inverter

    Room air conditioner inverter is four-in-one inverter which candrive two compressors,condenser fans andevaporating fans respectively. The four groups of inverters are driven and controlled independently, and the local fault will not affect the operation of other parts. The product is customized for different application environments, and can support three-phase AC380V, single-phase AC400V, DC750V and other power supply forms.

    • Características

    1. Modular design

    2. Speed tracking and restart function

    3. The maintenance is convenient, and the running state can be monitored on-line through the upper computer

    4. Stainless steel box to meet the 1 class B vibration requirements in IEC 61373

    5. EMC meets the requirements of EN 50121-3-2 standard

    • Especificación
